WODEGO – Migration of Turbine Controller and Voltage Controller

WODEGO – Migration of Turbine Controller and Voltage Controller

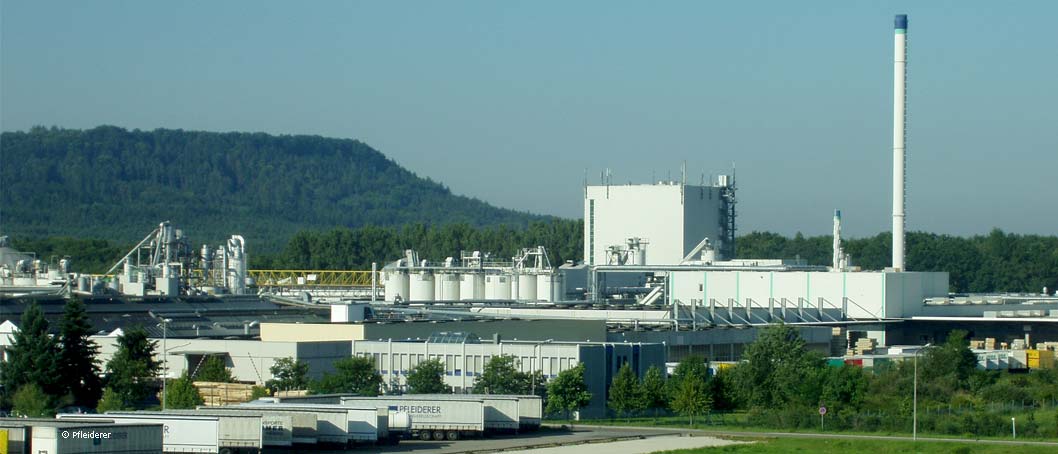

Location: Neumarkt, Germany

System/Technology: Siemens S7-300, ABB Unitrol 1010, WinCC, EPLAN Electric P8

Services: Production monitoring, Commissioning, Project management, Quality assurance, Site management, Documentation, As-built status and data recording, Basic-engineering and pre-engineering, Detail engineering, Installation supervision

Industry Branch/Type of Plant: Power Generation, Industrial systems, Power plants

Client: Wodego GmbH, Neumarkt

Tasks

  • Exchange of the existing Symadin turbine controller of a Siemens steam turbine for a S7-300 turbine controller
  • Exchange of the existing Siemens RG3 voltage controller for an ABB Unitrol 1010 voltage controller
  • I&C, electrical engineering and process engineering recommissioning of the turbine

DESCRIPTION OF DELIVERIES AND ACTIVITIES

Software planning

  • Programming the turbine controller in STEP 7 according to the specifications of the existing Symadin software
  • Configuration of the ABB Unitrol voltage controller according to the specifications of the system documentation
  • Adaptation of the WinCC interface

Hardware planning

  • Configuration of the S7-300 hardware and voltage controller
  • Installation planning
  • Documentation of the turbine controller cabinet and the voltage controller cabinet in EPLAN Electric P8

Works test

  • Carrying out the works test in INP Deutschland GmbH
  • Installation and system commissioning of the S7-300 hardware to be supplied
  • 100% signal test (input channel to WinCC) using our own test cabinets
  • Function test of the individual controllers of the turbine controller (speed, power, removal pressure, preliminary pressure) and control limitations on the simulator
  • Logging of results

Installation

  • Carrying out the removal and installation work

Commissioning

  • Writing the commissioning sequence plan and commissioning log
  • Carrying out the commissioning of the turbine and the voltage controller under own responsibility according to the sequence plan and logging the individual commissioning steps
